Electric Double-Layer Capacitor (EDLC)

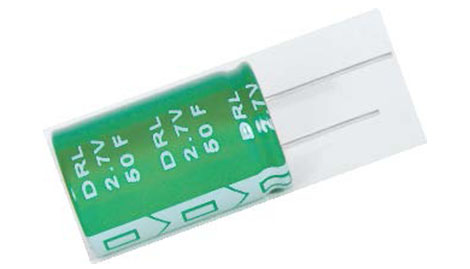

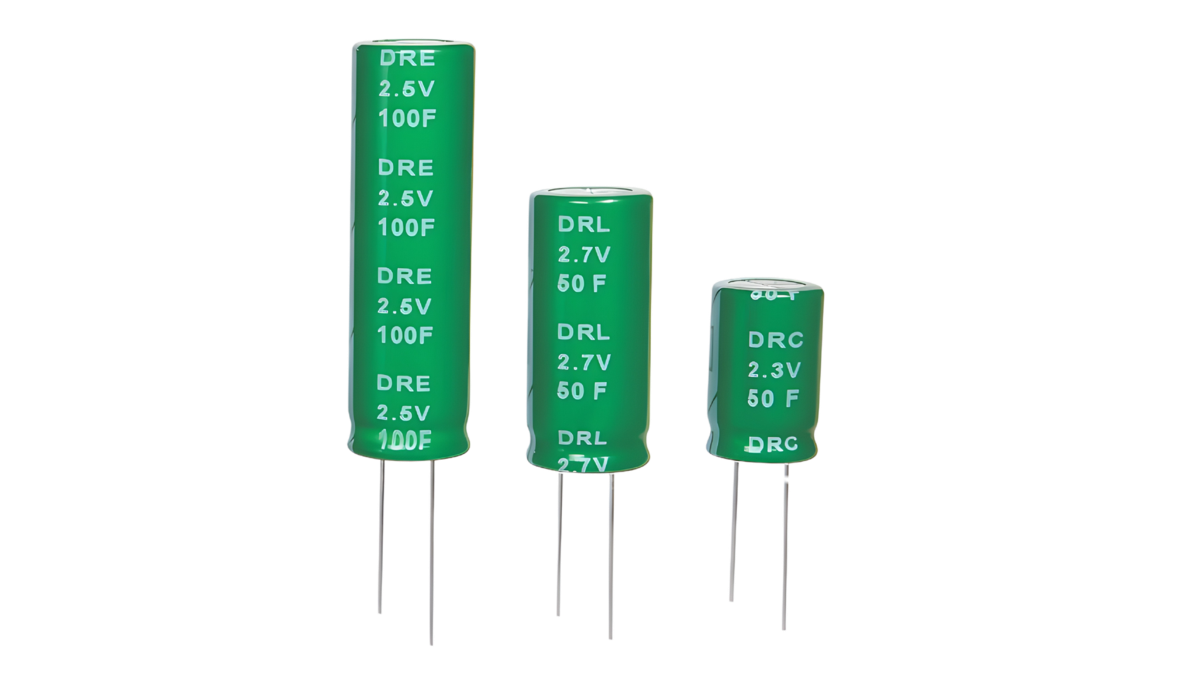

EDLC Radial Lead Single Cell Type

Parametric Search

Structure: Two straight radial leads, miniaturized cylindrical packaging.

Specifications: 2.5V ~ 2.7V, 0.3F ~ 500F, -40°C ~ +70°C; Operational life of 1,000 hours / Cycle life of 500,000 cycles.

Advantages: Wide operating temperature range, high energy density, long service life, fast charge and discharge. Suitable for short-term UPS, consumer electronics, portable power tools, industrial and automotive equipment, UAVs, smart meters, renewable energy energy storage systems and other applications.

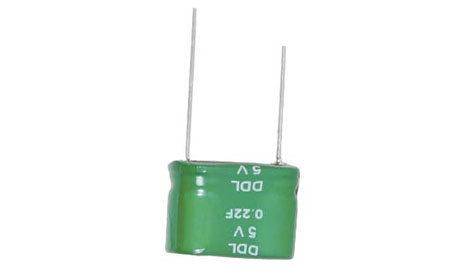

EDLC Radial Lead Series Products

Parametric Search

Structure: Two straight radial leads, series products with sleeved / potted packaging.

Specifications: 5V ~ 5.5V, 0.1F ~ 12F; -40°C ~ +70°C; Operational life of 1,000 hours / Cycle life of 500,000 cycles.

Advantages: Wide operating temperature range, high energy density, long service life and rapid charge-discharge performance. Ideal for short-term UPS, consumer electronics, portable power tools, industrial and automotive equipment, smart meters, renewable energy storage systems and other applications.

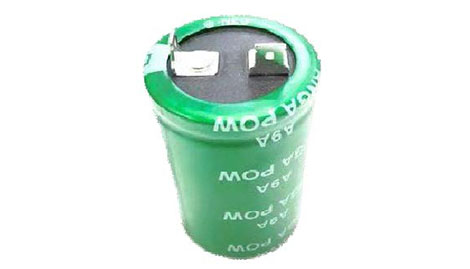

EDLC Snap-in Type

Parametric Search

Structure: Solder pins/tabs ("snap-in"), self-standing large cylindrical packaging, direct through-hole PCB soldering.

Specifications: 2.7V, 100F ~ 500F; -25°C ~ +70°C; Operational life of 1,000 hours / Cycle life of 500,000 cycles.

Advantages: Wide operating temperature range, high energy density, long service life and fast charge & discharge. Suitable for renewable energy storage systems, solar pavement lights and other applications.

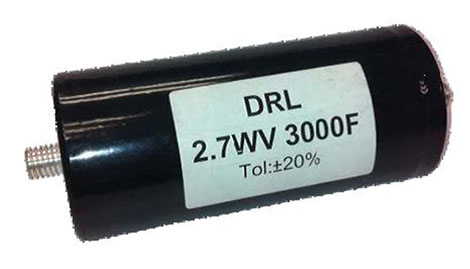

EDLC Screw Terminal Type

Parametric Search

Structure: Dual-ended terminal structure.

Specifications: 2.7V, 3000F; -40°C ~ +65°C; Operational life of 1,000 hours / Cycle life of 500,000 cycles.

Advantages: Ultra-low internal resistance, rapid charge and discharge, long service life. Applicable to UPS inverters, SVG, grid frequency regulation, smart grid, rail transit and marine power supplies, industrial supporting equipment, new energy photovoltaics, vehicle-mounted systems and other scenarios.
